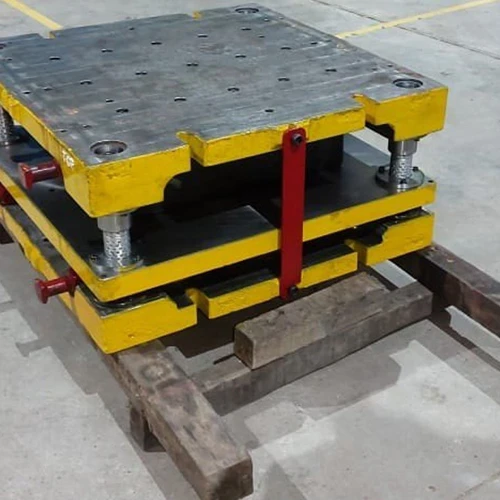

The draw tool is designed to perform deep drawing operations where a flat metal sheet is drawn into a cavity to form a part with significant depth and complex shapes. The tool typically consists of a die, punch, and other components that work together to stretch and shape the material.

2. Key Components:

• Die: The lower part of the tool that contains the cavity or form into which the metal is drawn. The die is typically made from high-strength tool steel and is designed to match the final shape of the part.

• Punch: The upper part of the tool that presses the metal sheet into the die cavity. The punch applies the force required to draw the metal and shape it into the desired form.

• Blank Holder: Also known as a hold-down or stripper, this component holds the metal sheet in place and ensures that it does not wrinkle or shift during the drawing process. It applies a consistent force to keep the material flat against the die.

• Ejector Pins: Mechanisms used to push the finished part out of the die cavity once the drawing process is complete. Ejector pins help remove the part without causing damage.

• Guide Pins and Bushings: Components that ensure precise alignment of the punch and die, maintaining accuracy during the drawing process.

3. Operation:

1. Material Loading:

   • Blank Preparation: A flat metal sheet, known as a blank, is cut to size and loaded into the draw tool.

2. Drawing Process:

   • Punching: The punch descends and presses the metal sheet into the die cavity. This forces the material to stretch and conform to the shape of the cavity.
   • Drawing: As the punch continues to press, the metal sheet is drawn into the die, forming a deep, three-dimensional shape. The blank holder applies pressure to prevent wrinkling and ensure a smooth drawing process.

3. Part Extraction:

   • Ejection: After the drawing process is complete, the ejector pins push the finished part out of the die cavity. The part is then removed, and the next blank is prepared for the next cycle.

4. Types of Draw Tools:

• Single-Action Draw Die: Performs a basic drawing operation in a single press stroke. Suitable for simpler shapes and lower volume production.
• Multi-Action Draw Die: Capable of performing multiple drawing operations or additional forming steps in a single press stroke. Used for more complex shapes and higher production volumes.
• Progressive Draw Die: Combines drawing with other operations such as punching or bending in a sequence of stages. This type is used for parts requiring multiple operations.

5. Design Considerations:

1. Material Properties:

   • Material Type: The design must account for the type of material being drawn (e.g., steel, aluminum) and its thickness. Different materials have varying drawing characteristics.
   • Material Flow: Ensure that the material flows smoothly into the die cavity without causing wrinkles or tearing.

2. Tool Configuration:

   • Die Design: Design the die cavity to achieve the desired shape with minimal material thinning or defects. The die should be carefully crafted to match the final part dimensions.
   • Punch Design: The punch must be designed to apply uniform pressure and achieve the correct shape. It should be aligned precisely with the die cavity.

3. Production Volume:

   • Tool Life: Design the tool to withstand the production volume and frequency of use. Incorporate features for easy maintenance and replacement of worn components.

6. Applications:

• Automotive Industry: Producing components such as vehicle body panels, fuel tanks, and engine parts.
• Consumer Goods: Manufacturing items like beverage cans, kitchen sinks, and appliances.
• Industrial Equipment: Creating parts for machinery and industrial applications.

7. Benefits:

• Complex Shapes: Draw tools enable the production of complex, three-dimensional parts with deep cavities and intricate shapes.
• High Efficiency: The deep drawing process is efficient for high-volume production of parts with consistent quality.
• Material Utilization: Maximizes the use of material with minimal waste compared to other forming methods.

8. Limitations:

• Tool Complexity: Designing and manufacturing draw tools can be complex and costly, especially for intricate parts.
• Material Limitations: Some materials may be more challenging to draw, requiring special considerations for thinning and forming.
